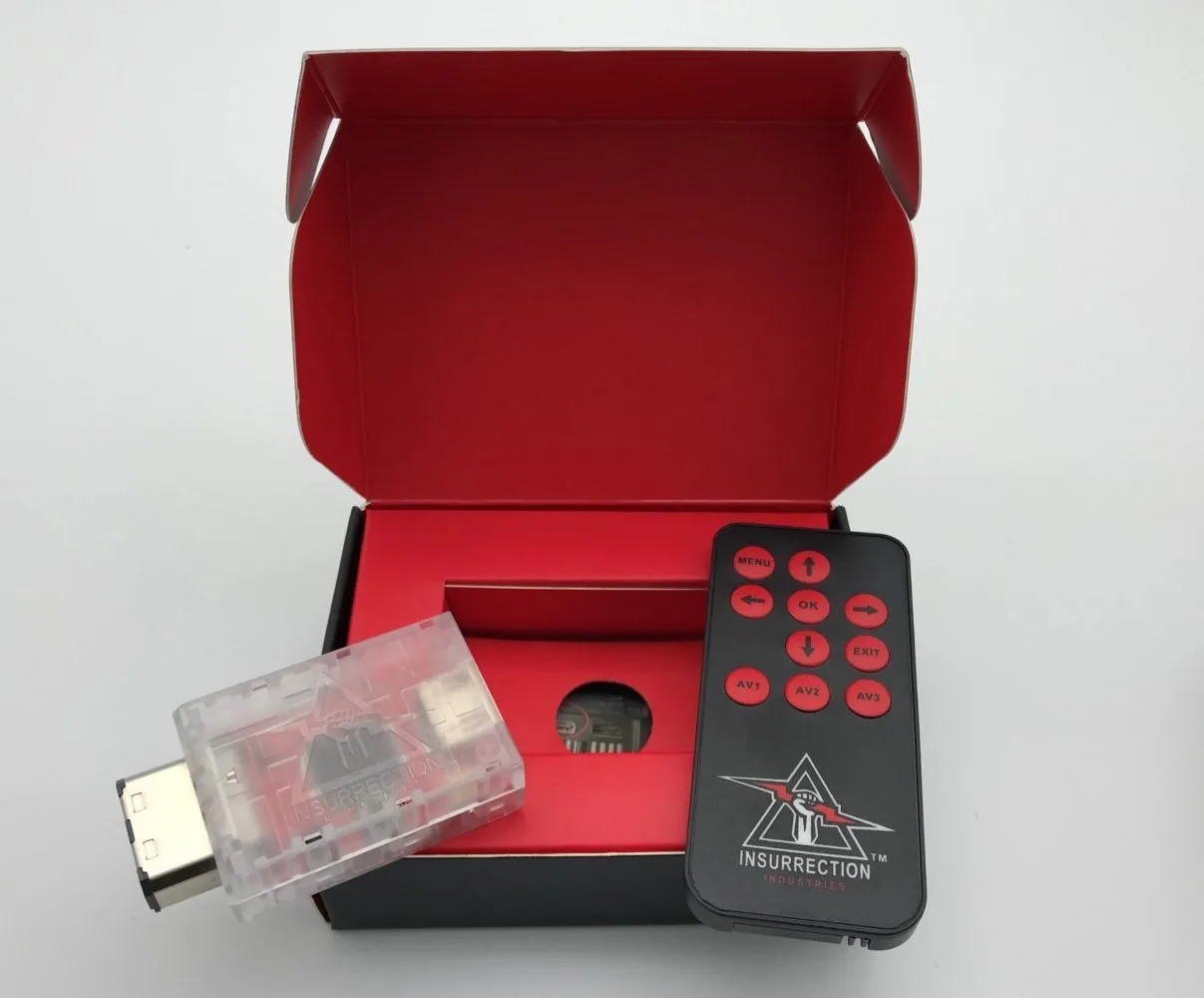

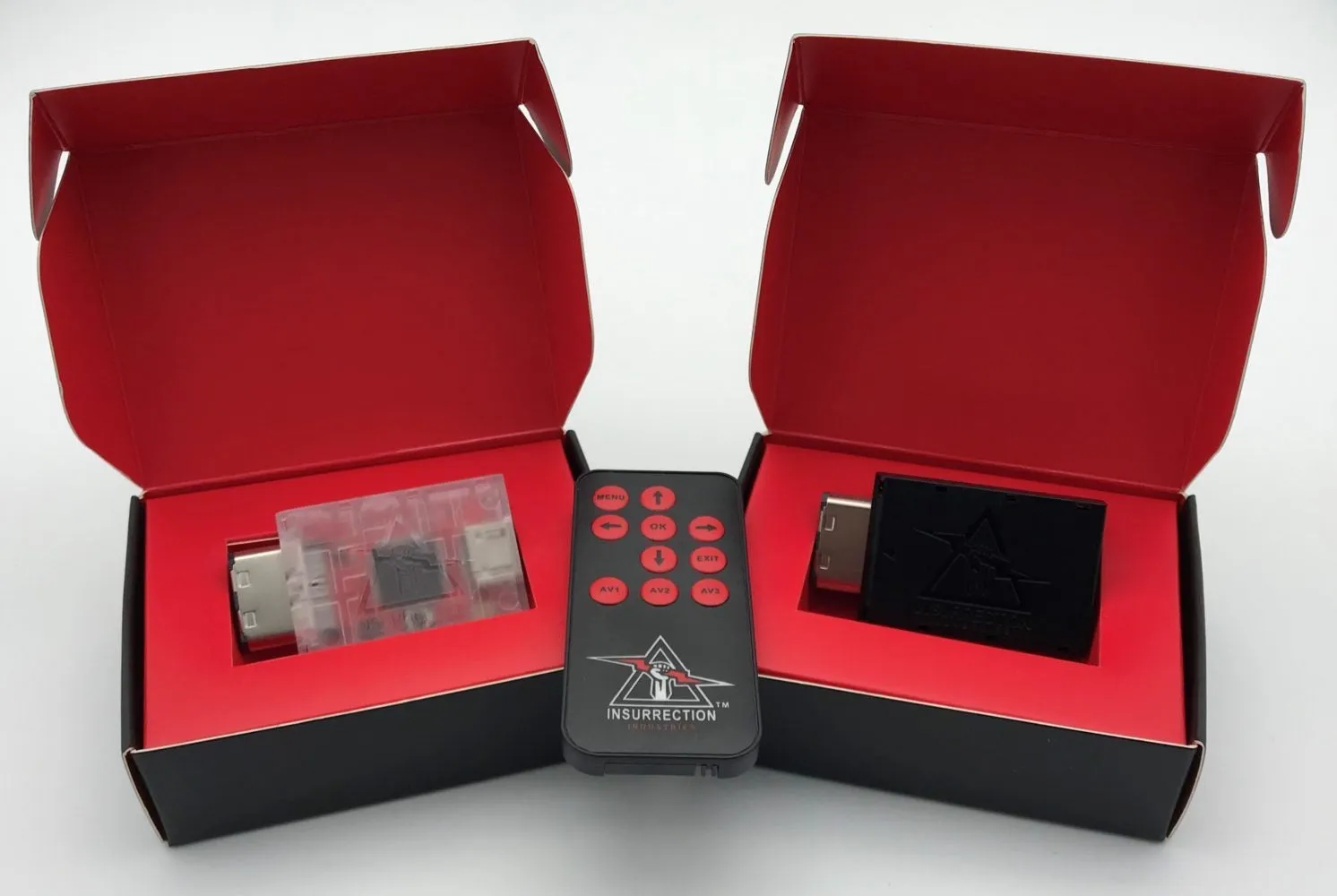

CARBY CLEAR & BLACK VERSIONS DUE LATE NOVEMBER/EARLY DECEMBER

Updated model with latest firmware 3.1

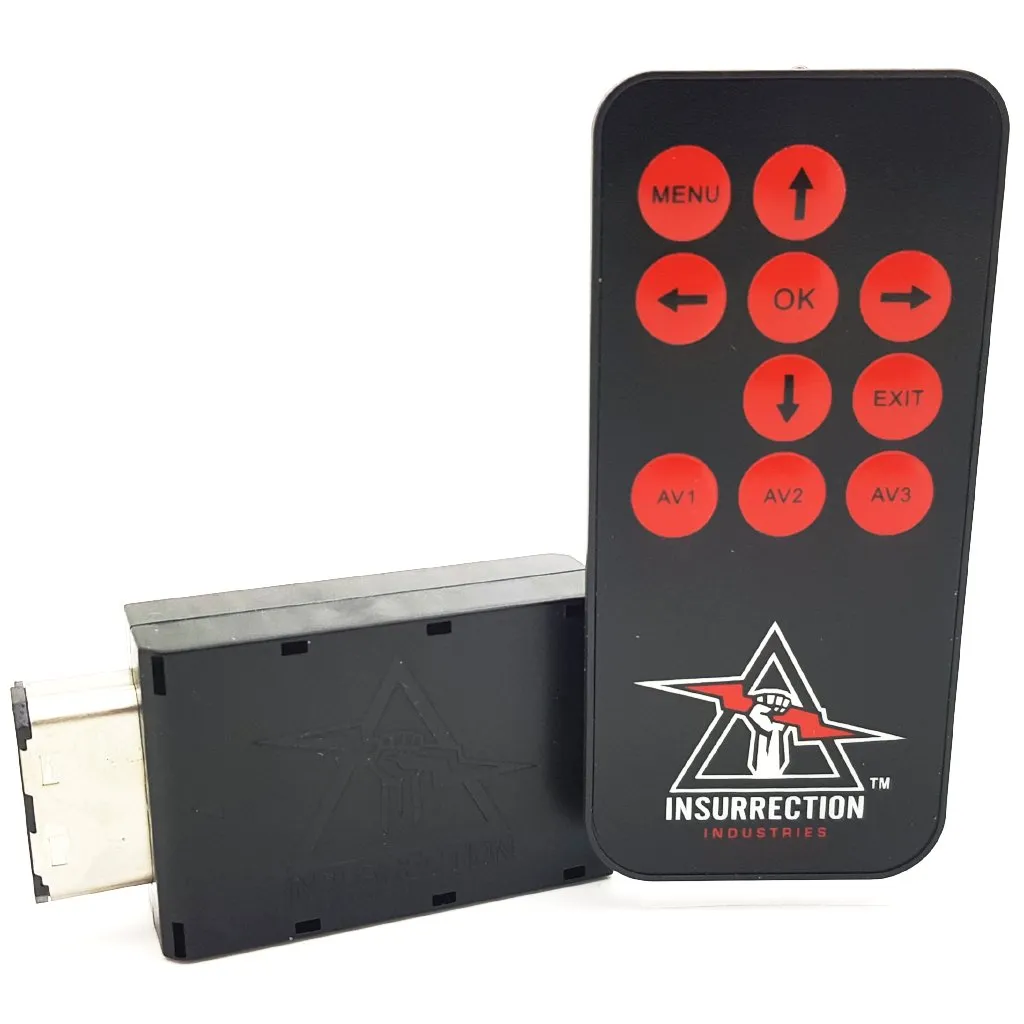

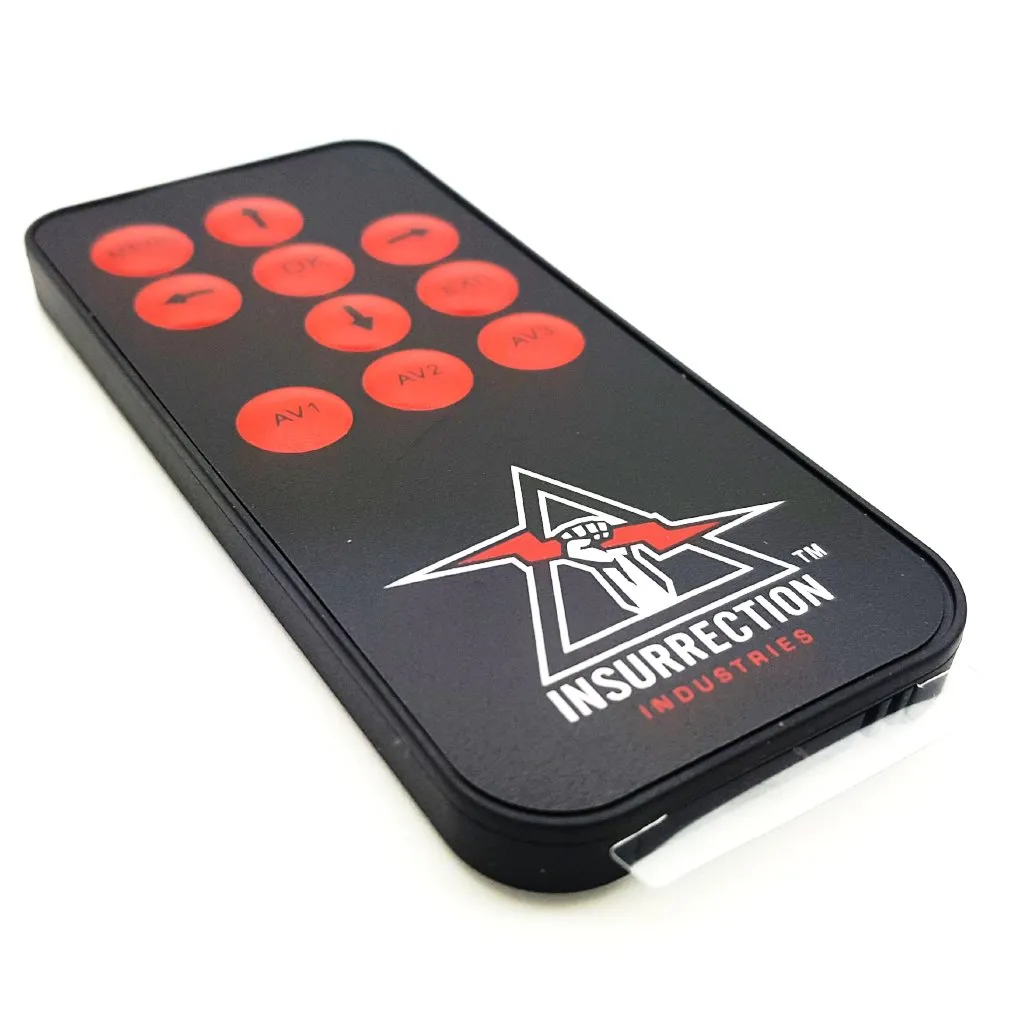

Please note you will need a CR2032 battery for the remote as they are removed before being shipped to us due to custom import laws.

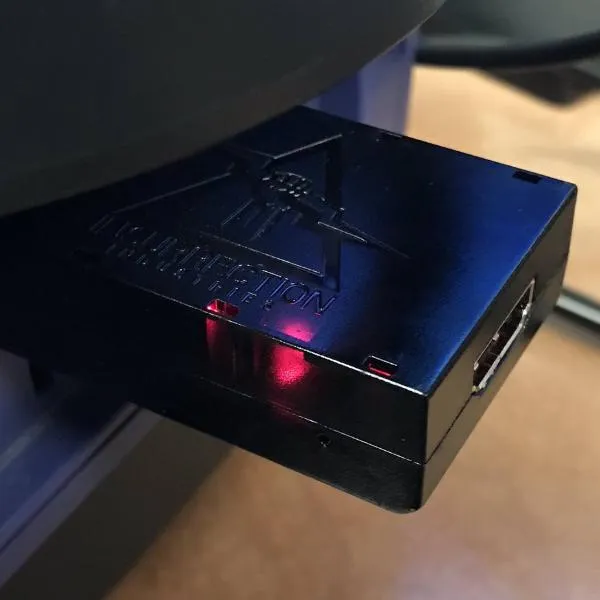

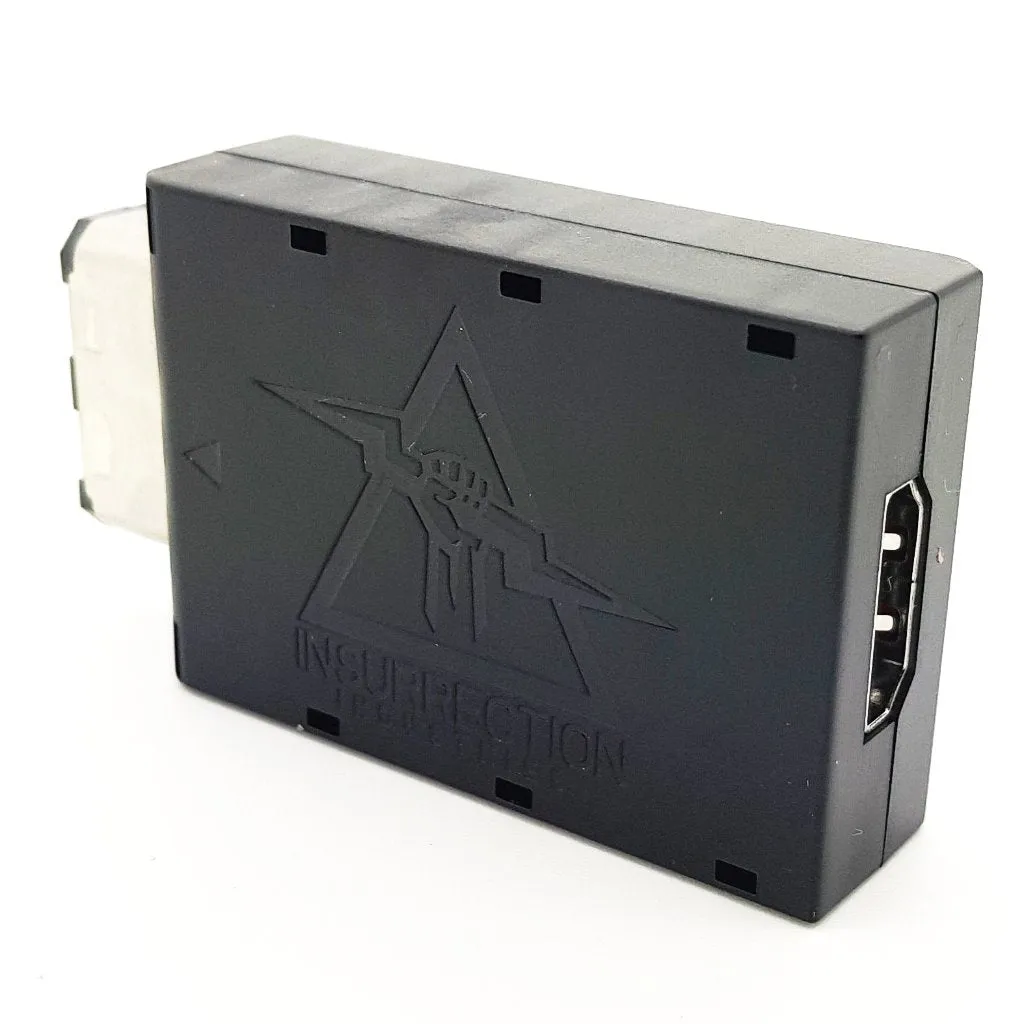

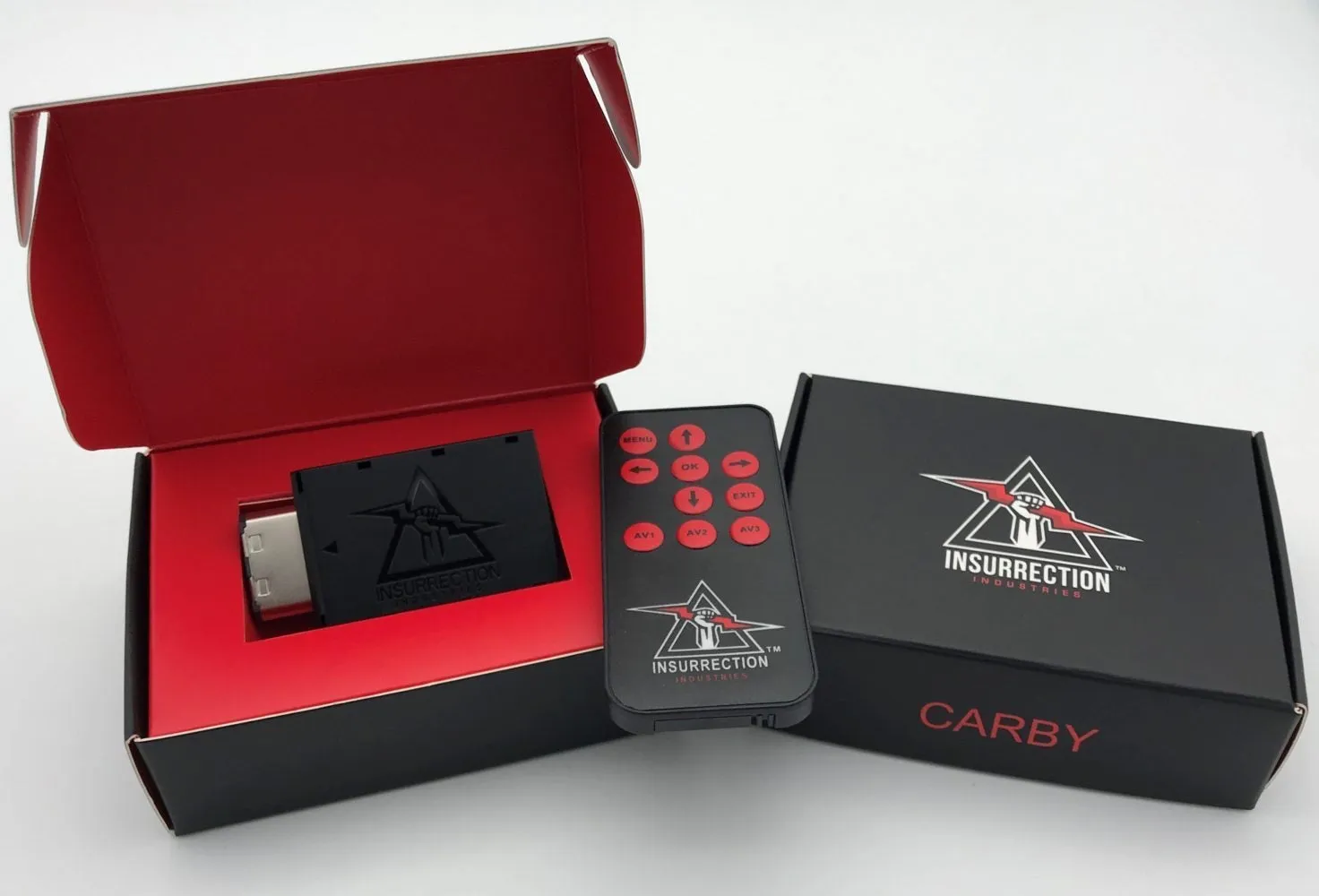

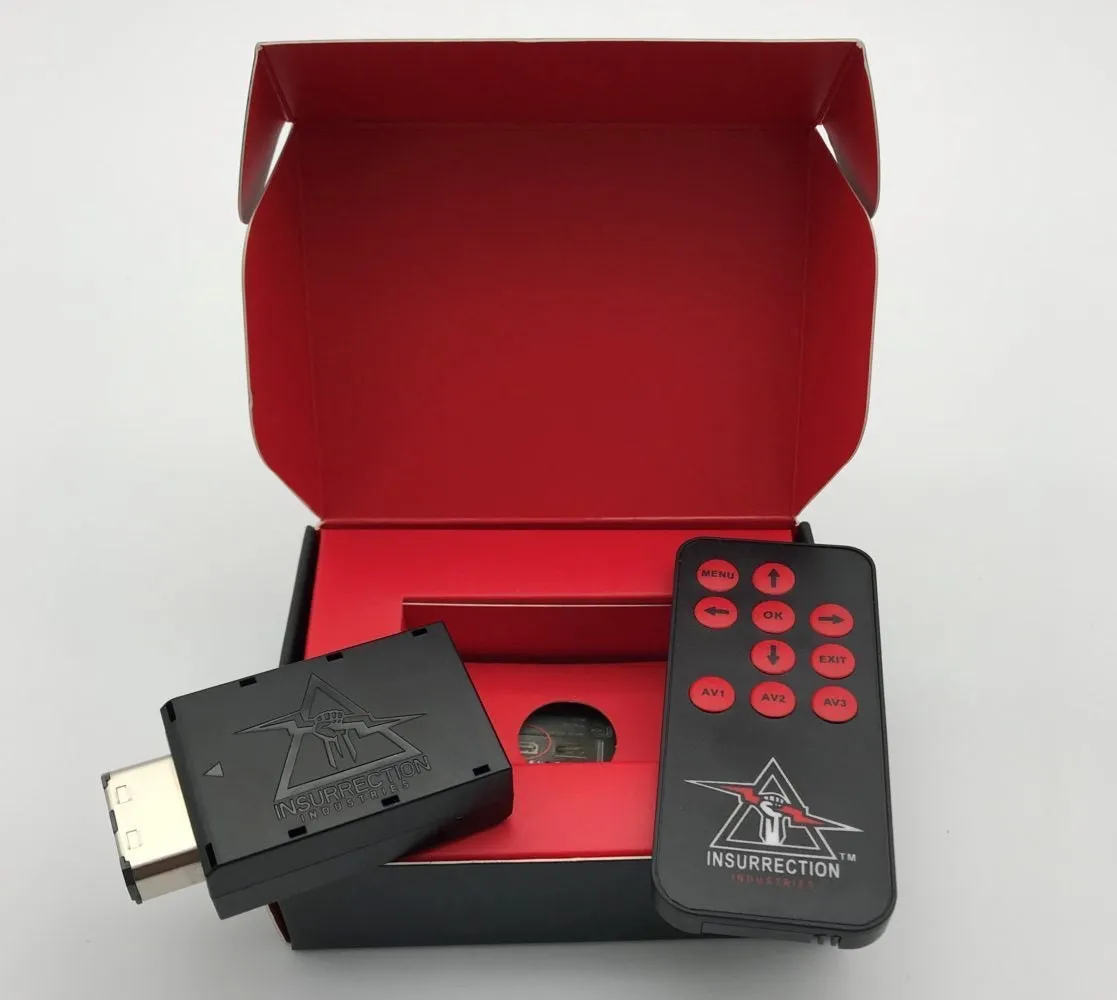

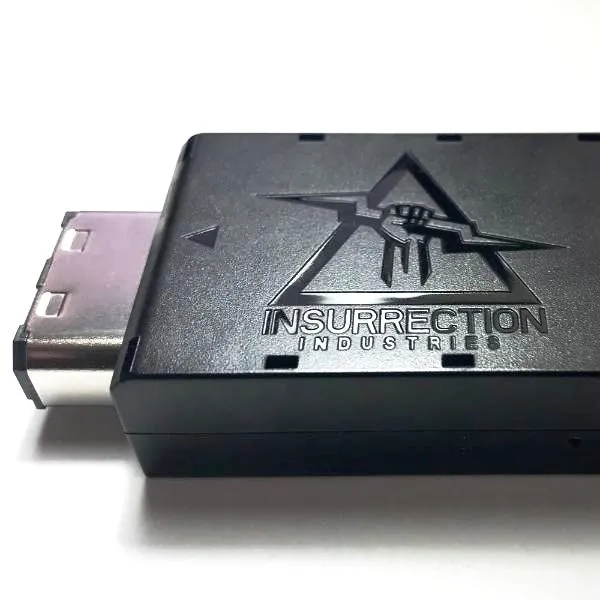

Dive back into the glorious world of nostalgic gaming with Carby! Designed for the iconic GameCube console, Carby is a dedicated HD adapter that unlocks a high-definition gaming experience like never before. Reminiscent of the golden age of gaming when titles like Super Mario Sunshine and Luigi's Mansion dominated the scene, Carby is here to intensify the nostalgia, capturing the essence of these legendary games in crisp, stunning visuals.

Carby is enthusiasts' secret weapon for revisiting the classics in a level of quality they were always meant to be seen. Its user-friendly interface, easy installation process, and compatibility with all HD supported devices make it a must-have for every retro-gaming aficionado. Plug and play, it offers a seamless experience that takes you back in time to the 2000s era of gaming.

This mighty accessory is compact and lightweight, designed for maximum portability and convenience. Whether you're planning a gaming marathon at a friend's house or simply relishing solo sessions at home, with Carby, your GameCube experience will step up a gear.

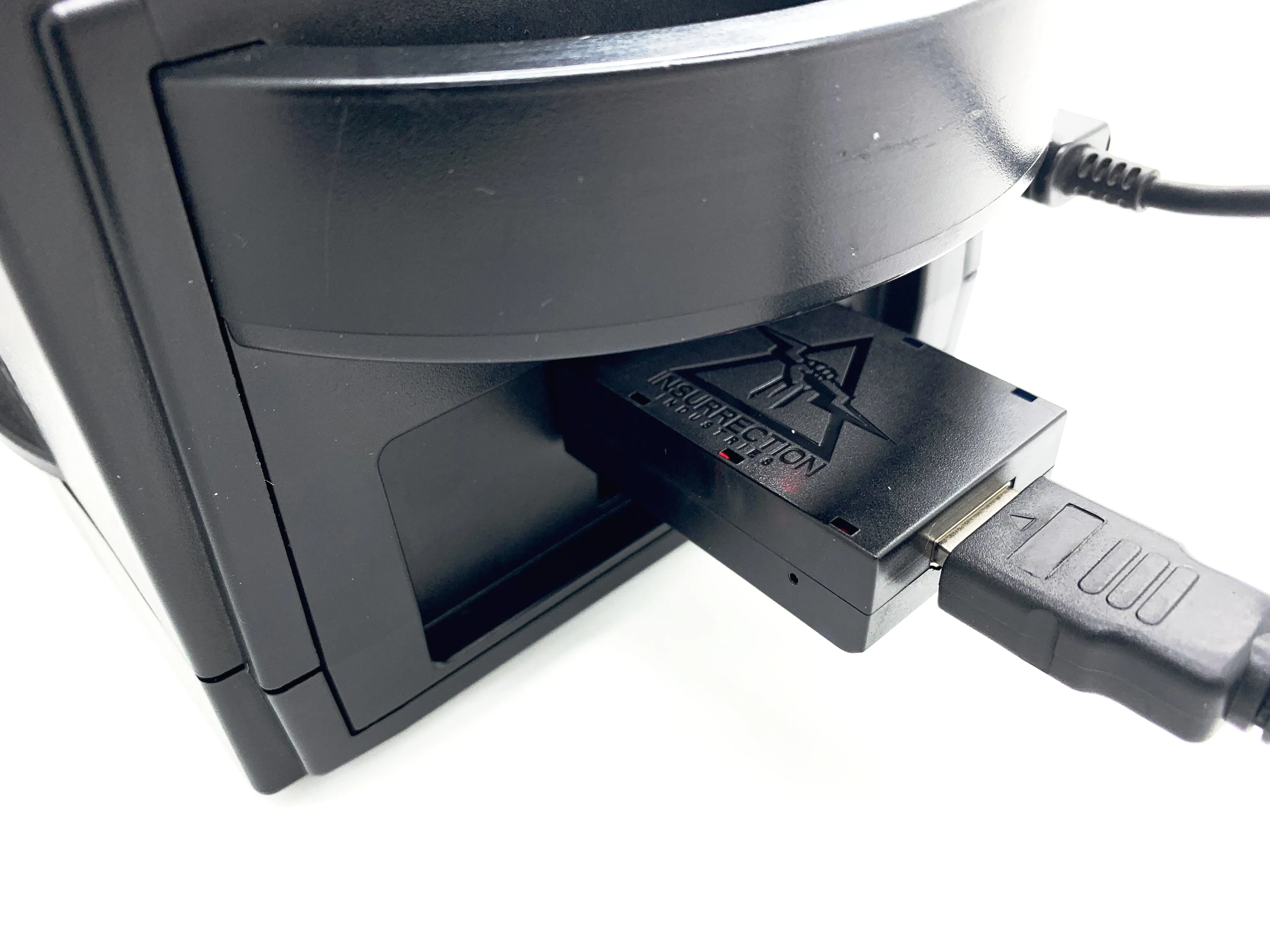

CARBY is only compatible with the model DOL-001 GC which has the , please confirm your version prior to purchase
HD cable is sold separately

Support

Carby Firware Update Via JTAG

The Connections

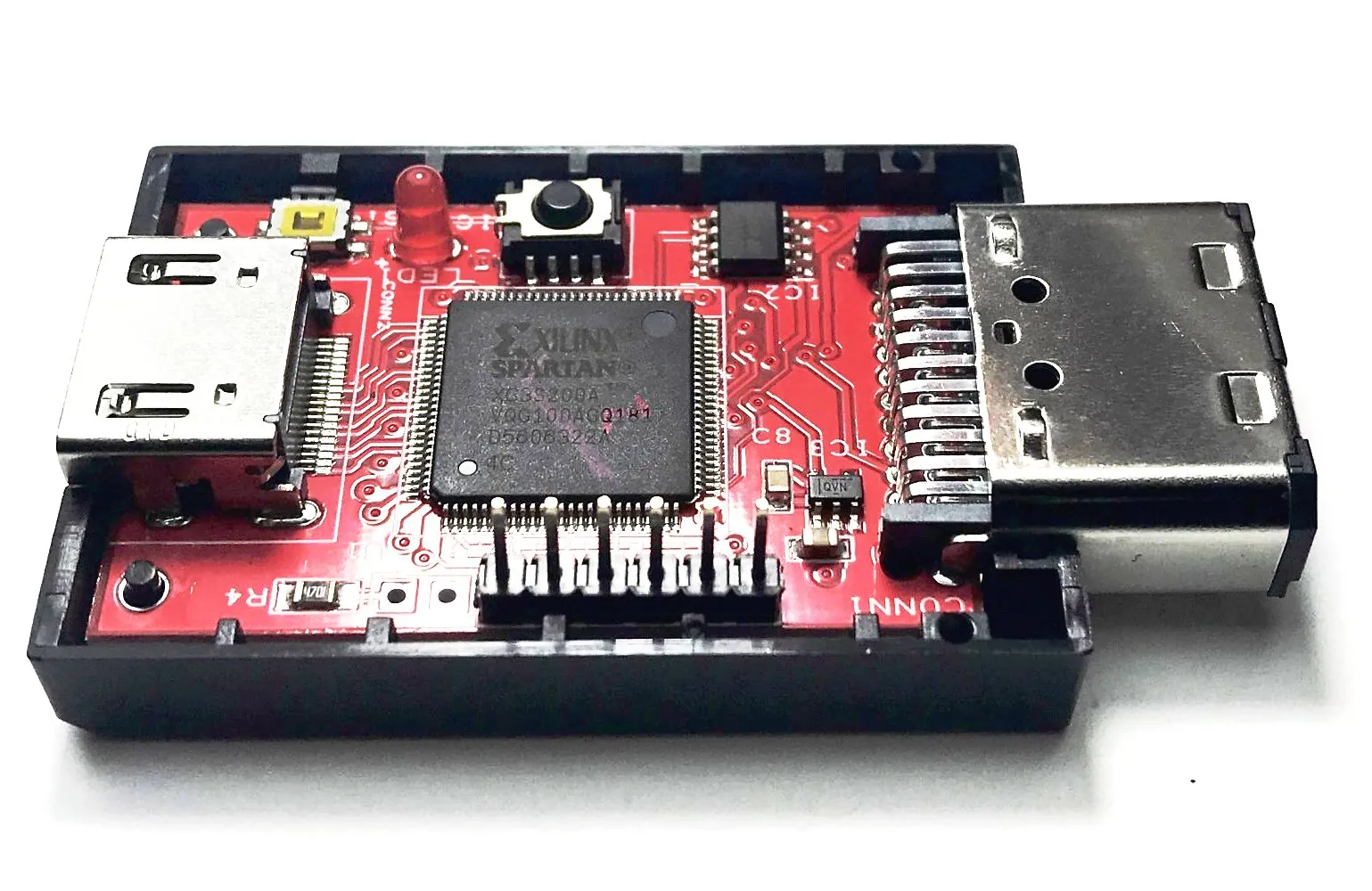

CONN 3 is the JTAG Header and can be used to update the FPGA.
The table below lists the pin signals, use this guide the connections to the JTAG programmer.

Pin Signal

1 3.3V

2 GND

3 TCLK

4 TDO

5 TDI

6 TMS
The Xilinx Platform Cable USB programmer was used for this example. The USB II is also a valid option.

Pin numbers for CONN3

he Steps: iMPACT Options

When iMPACT is opened you will be asked “Automatically create and Save Project? No
New Impact Project?” No
The New Impact Project Window will appear.
Navigate to where you saved the carby_FW2_4b.ipf file
Right click on the FLASH icon and select Program
The update usually takes about 30 seconds
When done you should see the program succeeded message

Reviews & Videos

Customer Video Review

*There will be a limited warranty protecting your purchase against manufacturing defects for one year; however damage caused by user modification of the device including reprogramming the firm ware will void the warranty
